Rigging an AI Image-to-3D Character: The One Blender Step That Makes It Work

We generated a character from one concept image, dropped the GLB into a Godot game, and had him standing on a railway platform in about ten minutes. Making him walk took the rest of the day, four failed approaches, and one Blender operation we should have run first.

This post is that day, in order, with the numbers. If you are wiring AI 3D generation into a real game pipeline — the neural counterpart to the code-first lane img2threejs and bunpav work in — the short version is: the mesh is riggable, and it does not look riggable, and one line separates those two facts.

TL;DR

The setup

The game is Mumbai Local, a first-person courier game on Mumbai's suburban railway. NPCs are normally procedural — shared rig, primitive parts, palette colours. Cheap and a bit anonymous.

We wanted one named character to read as somebody: Havaldar Gadbad, the railway police constable who takes your report and then tells you it is not his station. The plan was: generate a concept in the game's own art style, run image-to-3D, auto-rig onto the game's existing skeleton, let the animation code drive it.

Generation was excellent. Rigging is where this post lives.

Inspect the mesh before you write any rigging code

We did this too late. A headless Blender script over the GLB reported:

OBJECTS 1 ['textured_mesh.obj']
BBOX x -0.889..0.881  y -0.332..0.340  z -0.998..0.989
PARTS 593
  verts= 1198  dx=0.831 dy=0.215 dz=0.590  base_z=0.019
  verts= 1187  dx=0.713 dy=0.672 dz=0.110  base_z=-0.963
  verts= 1122  dx=0.169 dy=0.478 dz=0.968  base_z=-0.948
  verts= 1115  dx=0.717 dy=0.672 dz=0.035  base_z=-0.998

Three things in that dump:

• 593 loose parts. This is the number that sent us down the wrong road for six hours.
• Rows 2 and 4 are the ground. Wide (0.71 × 0.67), flat (dz 0.11 and 0.035), at the very bottom (base_z ≈ -0.98). The generator posed him on a plinth and welded it in.
• 40,000 triangles, against roughly 25 primitives for the game's procedural crowd bodies.

Why "593 disconnected parts" makes auto-riggers refuse

Adobe publishes Mixamo's auto-rigger requirements, and the raw export violates most of them:

These are not arbitrary. Every skinning algorithm assumes neighbouring vertices are connected so a weight can propagate between them. Break connectivity and the assumption dies — which is what happens on the raw import, and exactly why the fix below works.

Four ways we tore his arms off

We wrote our own Blender rigger, because the game's rig is unusual: rigid parts on bone attachments, not smooth skinning. So we started the same way — every vertex weighted 1.0 to exactly one bone.

1. Plane cuts. Classify each vertex by bounding-box fractions. Legs walked; the arms smeared, because he holds tea and his forearm sits inside the body's own width.
2. Fold the arms into the spine. Weight them to the torso so the upper body moves as one. This worked and looked fine — but it is a workaround, not a rig.
3. T-pose source. We regenerated the concept in a strict T-pose with empty hands. Segmentation improved; the arms still fanned into flat sheets.
4. Cylinder around the arm axis. A plane is the wrong shape for a limb. Arm vertex counts doubled from 358 to 802 — the whole sleeve was finally included — and it still fanned.

At this point we concluded the mesh was unriggable and started writing that up. That conclusion was wrong.

The one step: merge by distance

The 593 shells were never disconnected. They were coincident vertices that had never been welded — every UV and normal seam is two or more vertices at one position, and a loose-parts count reads each side as its own island.

One Blender operation, measured across thresholds:

as imported            islands=593   verts=26843   tris=40000
merge dist 0.0001      islands=4     verts=19963   tris=39980
merge dist 0.0010      islands=4     verts=19862   tris=39776
merge dist 0.0050      islands=3     verts=19073   tris=38239

593 islands to 4, at a threshold of a tenth of a millimetre, for a 25% drop in vertex count and 20 triangles. Not a single surface moved. In script form:

bpy.ops.object.mode_set(mode="EDIT")
bpy.ops.mesh.select_all(action="SELECT")
bpy.ops.mesh.remove_doubles(threshold=0.0001)
bpy.ops.object.mode_set(mode="OBJECT")

Run this before anything else. It is the difference between a mesh that cannot be rigged and one that rigs itself.

Then stop hand-writing weights and use bone heat

With a connected surface, Blender's own bone-heat diffusion works — and it is the right algorithm:

bpy.ops.object.select_all(action="DESELECT")
body.select_set(True)
rig.select_set(True)
bpy.context.view_layer.objects.active = rig
bpy.ops.object.parent_set(type="ARMATURE_AUTO")

The difference is categorical. A hard one-bone-per-vertex assignment shears at every boundary, and smoothing afterwards cannot recover a gradient that was never computed. Bone heat diffuses a weight across the surface, so a hip bends instead of tearing. It had been failing for us not because it is a bad algorithm but because it had nothing to diffuse across.

The headless Blender bug that ate the afternoon

Worth its own section, because it will happen to you.

In a blender -b -P script, bpy.ops.object.transform_apply() can silently do nothing. It reads the evaluated dependency graph; in a script where nothing has evaluated, it returns without error and changes nothing. No exception, no warning.

A --yaw 180 flag to turn a backwards model appeared to work and did not. Adding bpy.context.view_layer.update() did not help. The diagnostic that caught it was measuring an asymmetric feature before and after — the cap peak juts forward, so the mean Y of the top 15% of vertices should flip sign:

BEFORE head_mean_y 0.0099  n=3068
AFTER  head_mean_y 0.0099  n=3068     # unchanged: the rotation never applied

Skip the operator and transform the data:

from mathutils import Matrix

def bake_transform(obj):
    """Fold the object transform into its vertices and reset it to identity."""
    obj.data.transform(obj.matrix_world)
    obj.data.update()
    obj.matrix_world = Matrix.Identity(4)

obj.data.transform(Matrix.Rotation(math.radians(180), 4, "Z"))
obj.data.update()

Mesh.transform() needs no operator context, no selection, and no depsgraph. In headless Blender, prefer data manipulation over bpy.ops for anything you cannot visually verify.

Removing the ground without removing the shoes

The plinth is recognised by three conditions together:

flat     = dz < 0.16 * height
wide     = max(dx, dy) > 0.45 * width
grounded = base_z < floor + 0.06 * height
if flat and wide and grounded:
    drop(part)

Our first version compared each part's height against the tallest part's and used a 3% threshold. It threw away 434 harmless fragments and left the slab exactly where it was. A later version added "flat and grounded and small" to catch crumbs — and deleted the character's shoes, which are flat, grounded, and small after decimation. All three conditions, no looser.

Run the ground removal before the weld, while the slab is still its own island. Welding joins it to the shoes and there is nothing left to drop.

The final pipeline

tools/blender/rig_npc.sh character.glb \
  --tris 14000 --arms none --yaw 180

In order:

1. Import and join into one object; bake the transform into the mesh data
2. Drop the ground (flat + wide + grounded), while it is still separate
3. Merge by distance at 0.0001 — the step everything depends on
4. Decimate to a triangle budget (40,000 → 14,000 was visually identical; 6,000 showed faceting)
5. Scale to character height and stand on the floor
6. Build the armature with your engine's bone names
7. Bone-heat weight via ARMATURE_AUTO
8. Export GLB with skins

We decided arms should not move

Even with a welded mesh and heat weights, auto-segmenting an arm stayed unreliable — the shoulder fans whichever way the blend is shaped, because "where does the arm stop and the sleeve start" has no clean answer on a generated mesh.

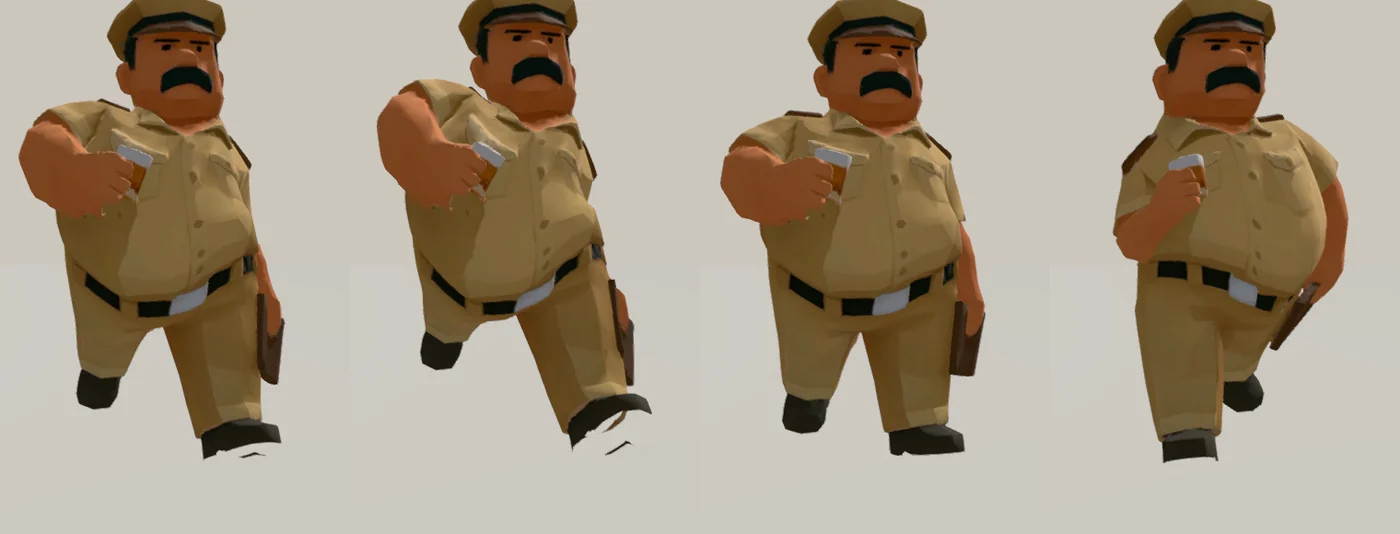

So we stopped trying. Concepts are generated in a natural standing pose holding their props, and rigged with arms fixed. Legs walk, the torso leans, the head moves, and the constable strolls the platform with his tea held steady. It reads correctly and cost nothing — and for a character seen at platform distance, arm swing was never the thing carrying the performance.

That is a genuine finding, not a consolation prize: decide which limbs need to move before you rig, and rig only those.

What people are asking

"Is the raw mesh useless without rigging?" Not at all. Our static modelled constable looked dramatically better than the eight procedural NPCs beside him. Most named background characters barely move — ship them static and spend the rigging budget elsewhere.

"Does this apply to props and environment art?" Barely. Props have no skeleton, so none of this matters. Image-to-3D for a crate, a signboard, or a bench is production-ready today. Rigging is where the constraint bites, which is why the code-first procedural lane stays attractive for objects needing pivots and sockets.

"Should I just use the generator's own auto-rig?" If it has one, yes — Meshy and Tripo both ship retopology and auto-rigging. Our route matters when you need your engine's exact skeleton, which is the case here.

"How does this compare to procedural 3D generation?" Different jobs. Procedural code gives diffable, parameterised geometry with named sockets — see bunpav's procedural 3D and game audio lab and the Hop Earth-style driving game guide. Neural image-to-3D gives a characterful one-off you could not hand-author in the time. Characters lean neural; systems lean procedural.

Honest limitations

• Arm segmentation is still unsolved here. We chose not to need it. If your character must gesture, budget for manual weight painting or a purpose-built auto-rigger.
• Merging by distance averages split UVs. At 0.0001 the visual cost was nil for us, but a mesh with hard texture seams at those vertices may show smearing.
• Rigid vs smooth skinning is a style choice. Our engine uses bone attachments, so seams are acceptable.
• Triangle budgets are art-direction-specific. 14,000 suits a chunky low-poly style at close range.

Where this leaves the pipeline

AI image-to-3D is production-ready for game characters today — but the first thing you do to the mesh decides whether anything after it works. Inspect the loose-part count, weld, then rig. One line of Blender Python would have told us on minute one what four rigging attempts took six hours to say.
